10-Amp Wanderer PWM Charge Controller Renogy

Description

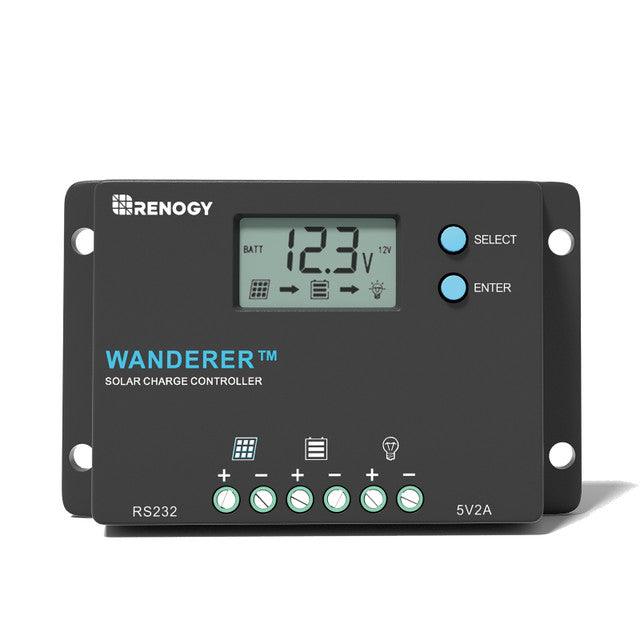

The Renogy Wanderer 10A PWM Solar Charge Controller is a compact, reliable solution for small off-grid and mobile solar systems. It efficiently manages charging for 12V or 24V battery banks while offering five flexible load modes to match different power needs. With a lightweight design of just 0.27 lbs and a wide operating temperature range of -31°F to 113°F, it performs well in both extreme cold and hot environments. The backlit LCD screen clearly displays system operation, load control status, and error codes for easy monitoring.

Manual

Key Features

• 10A PWM Charging – Efficient pulse-width modulation charging that helps extend battery life and improve overall system performance.
• 12V/24V Auto Recognition – Automatically detects system voltage for simple plug-and-play setup (non-lithium default; lithium selectable).
• Five Load Modes – Multiple load control options to suit different applications and power requirements.

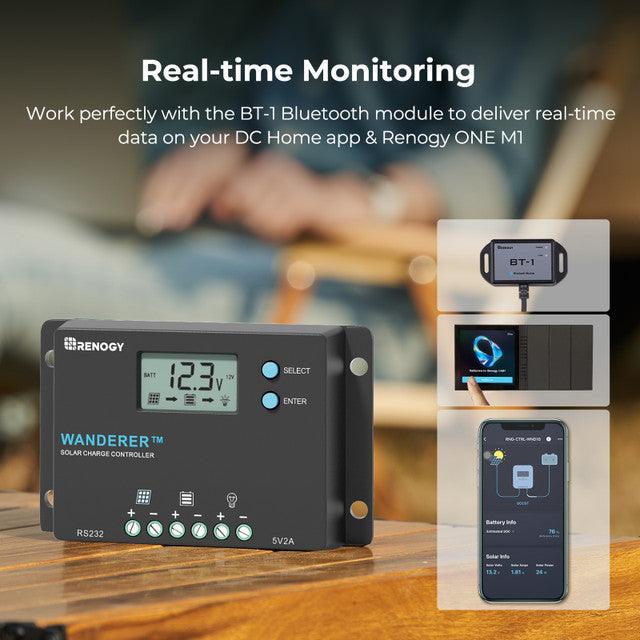

• Backlit LCD Display – Shows real-time system status, battery information, load control, and error codes at a glance.
• Ultra-Lightweight & Compact – Weighs only 0.27 lbs with a small footprint for easy installation in RVs, boats, cabins, or portable setups.
• Wide Temperature Range – Operates reliably from -31°F to 113°F (-35°C to 45°C).
• Comprehensive Protections – Built-in safeguards against overcharge, over-discharge, reverse polarity, short circuit, and more.
• USB Charging Port – Convenient 5V/2A USB output for powering small devices (on most versions).

Perfect For

• Small off-grid solar systems
• RVs, camper vans, and trailers
• Boats and marine applications
• Cabins, sheds, and portable power setups
• Entry-level 12V/24V battery banks with panels up to ~130W

Specifications

• Rated Charge Current: 10A
• System Voltage: 12V / 24V Auto Recognition
• Max. PV Input Voltage: 50V DC
• Max. PV Input Power: ~130W (12V) / ~260W (24V)
• Max. Wire Gauge: Up to 12 AWG
• Self-Consumption: <10 mA
• USB Port: 5V / 2A max
• Working Temperature: -31°F to 113°F (-35°C to 45°C)
• Weight: 0.27 lbs (122 g)
• Dimensions: Approx. 4.7 × 3.0 × 1.1 in

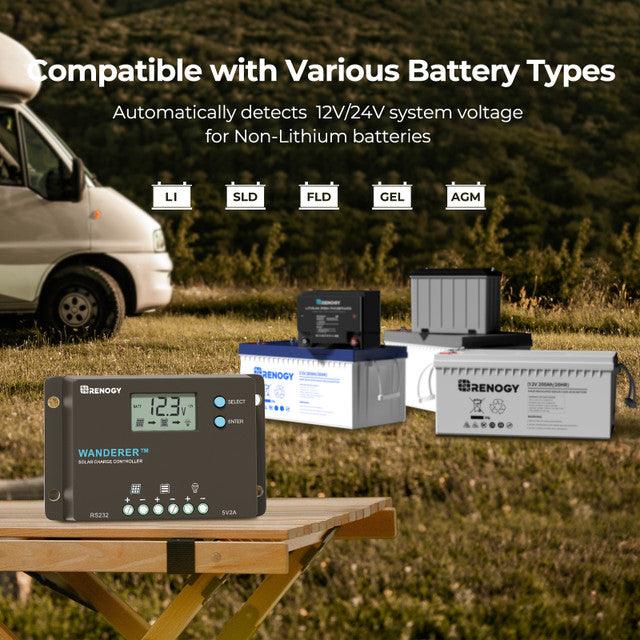

• Battery Compatibility: Sealed (AGM), Gel, Flooded, and Lithium

Package Includes

• Renogy Wanderer 10A PWM Solar Charge Controller × 1
